Deskripsi

Packing: Wooden Boxes

Model NO.: SHD315/90

Standard: CE, SGS

Trademark: Bada

Origin: Wuxi

Certification: CE

Product Type: Plastic Pipe

Raw Material: HDPE

Automatic: Semiautomatic

Type ( For Injection Machine) : Full-Electric Controlled

Kind: Full-Electric Controlled

Type: Plastic Auxiliary Equipment

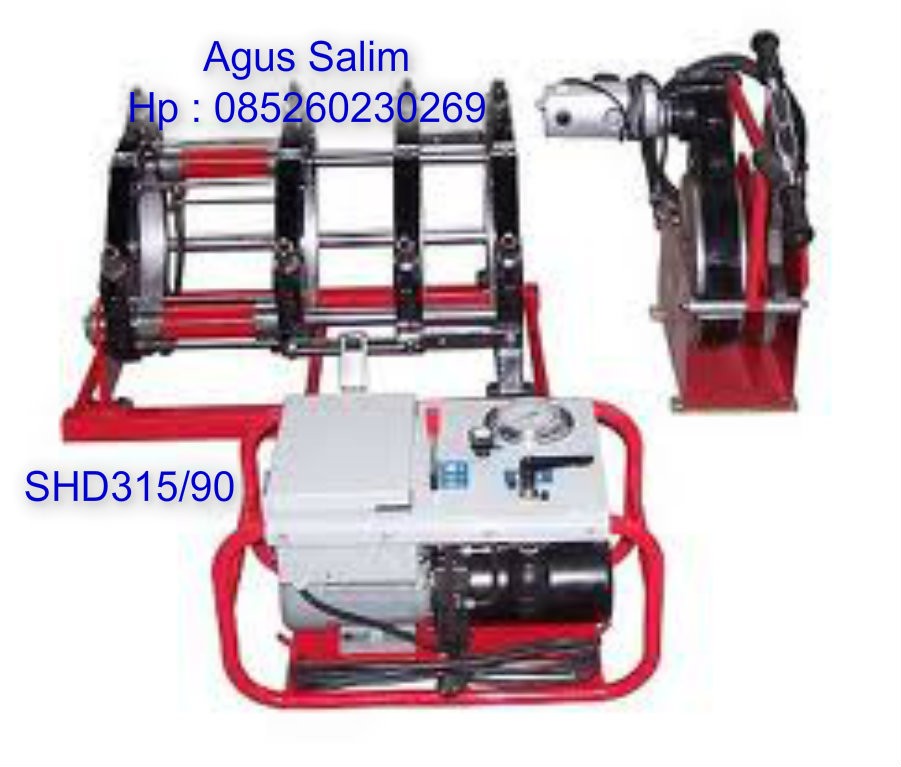

Item Name: HDPE Pipe Butt Fusion Welding Machine

SHD315/90 Butt fusion machine, Butt fusion welding machine, Butt welding machine, Hydraulic butt welding machine, HDPE pipe welding machine

Application:

Hydraulic butt fusion welding machine is suitable for butt fusion welding of plastic pipes and fittings made of PE, PP, and PVDF in construction site or workshop.

Features:

1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.

2. Removable PTFE coated heater with separate temperature control system.

3. Electric facer with reversible double cutting edge blades.

4. Hydraulic unit provides welding machine with compressing power.

5. Be made of lightweight and high strength material; Simple structure and easy to operate.

6. Low starting pressure ensures reliable welding quality of small pipes.

7. Separate two-channel timer shows time in soaking and cooling phases.

8. High-accurate and shockproof pressure meter indicates clearer readings.

Technical specifications:

1. Welding range: 315_630mm in diameter

2. Maximum effective pulling force: 16546N

3. Facer power: 1500W 380V 50Hz

4. Heater power: 8500W 380V 50Hz

5. Hydraulic unit power: 1500W ( 0-63bar) 3800V 50Hz

6. Temp. Deviation in surface: 170-250Â ° C Â ± 7Â ° C

The whole machine consists of machine body, hydraulic unit, facer, heater, support for heater & facer.

On request ( accessories) :

1. Flange stud end holder

2. Data logger

3. Electrical hoist
